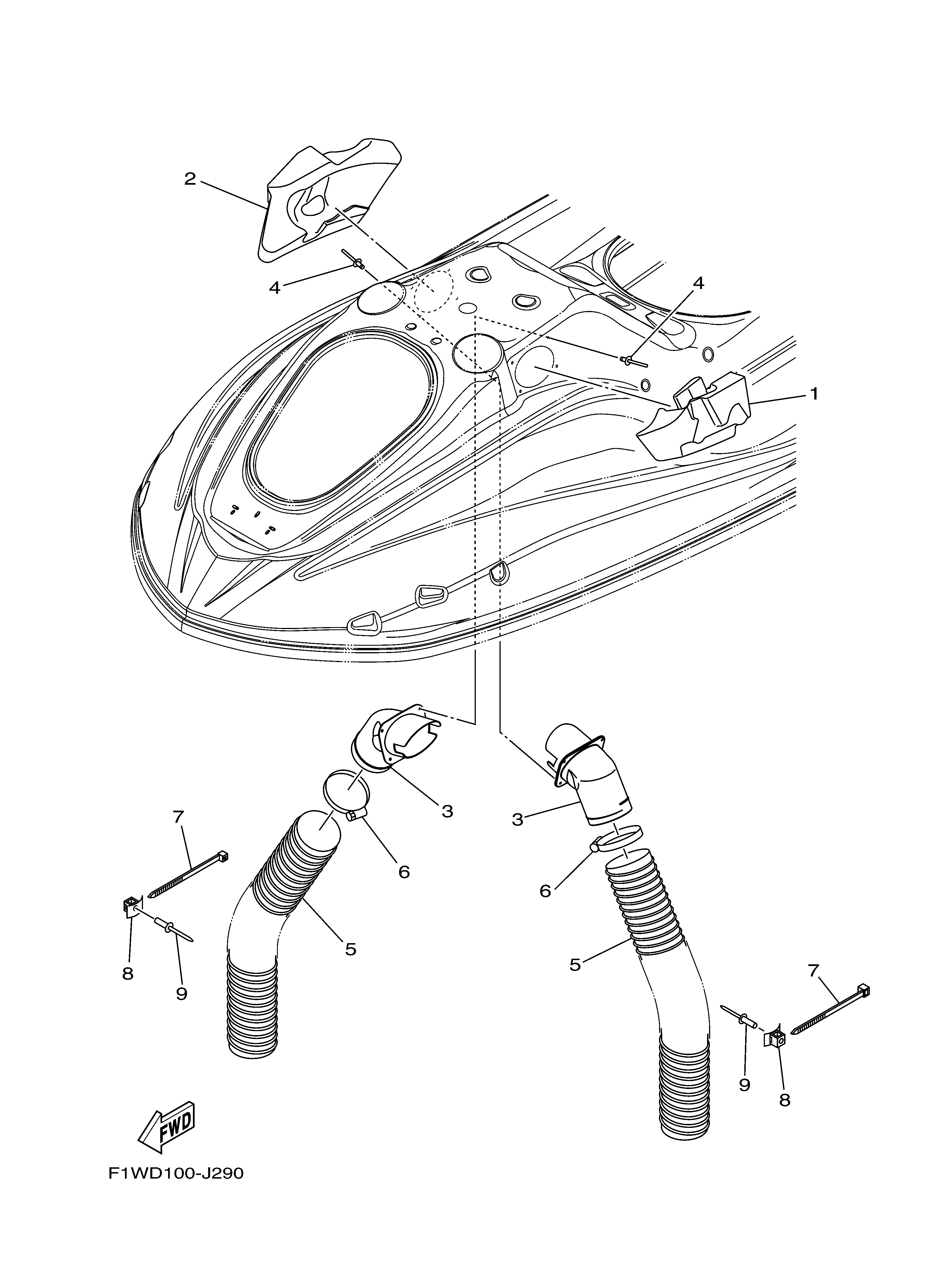

2011 FX SHO (FX1800K) F1WN - VENTILATION
Roll over image to zoom in Click on image to zoom
2011 FX SHO (FX1800K) F1WN - VENTILATION

2011 FX SHO (FX1800K) F1WN - VENTILATION

YAMAHA Catalog

Description

REF # PART NUMBER ITEM NAME QTY
1 F1W-U2187-00-00 BOX, INDUCTION 1 1
2 F1W-U2188-00-00 BOX, INDUCTION 2 1
3 F1W-U2127-01-00 BASE, AIR INTAKE 2
4 90267-48806-00 RIVET, BLIND 2
5 F0X-U213G-01-00 HOSE, VENTILATOR 2 2
6 90601-200U7-00 BAND 2
7 90464-99804-00 CLAMP 2
8 F1W-U828M-00-00 BASE, CLAMP 2
9 90267-48802-00 RIVET, BLIND 2
