Description

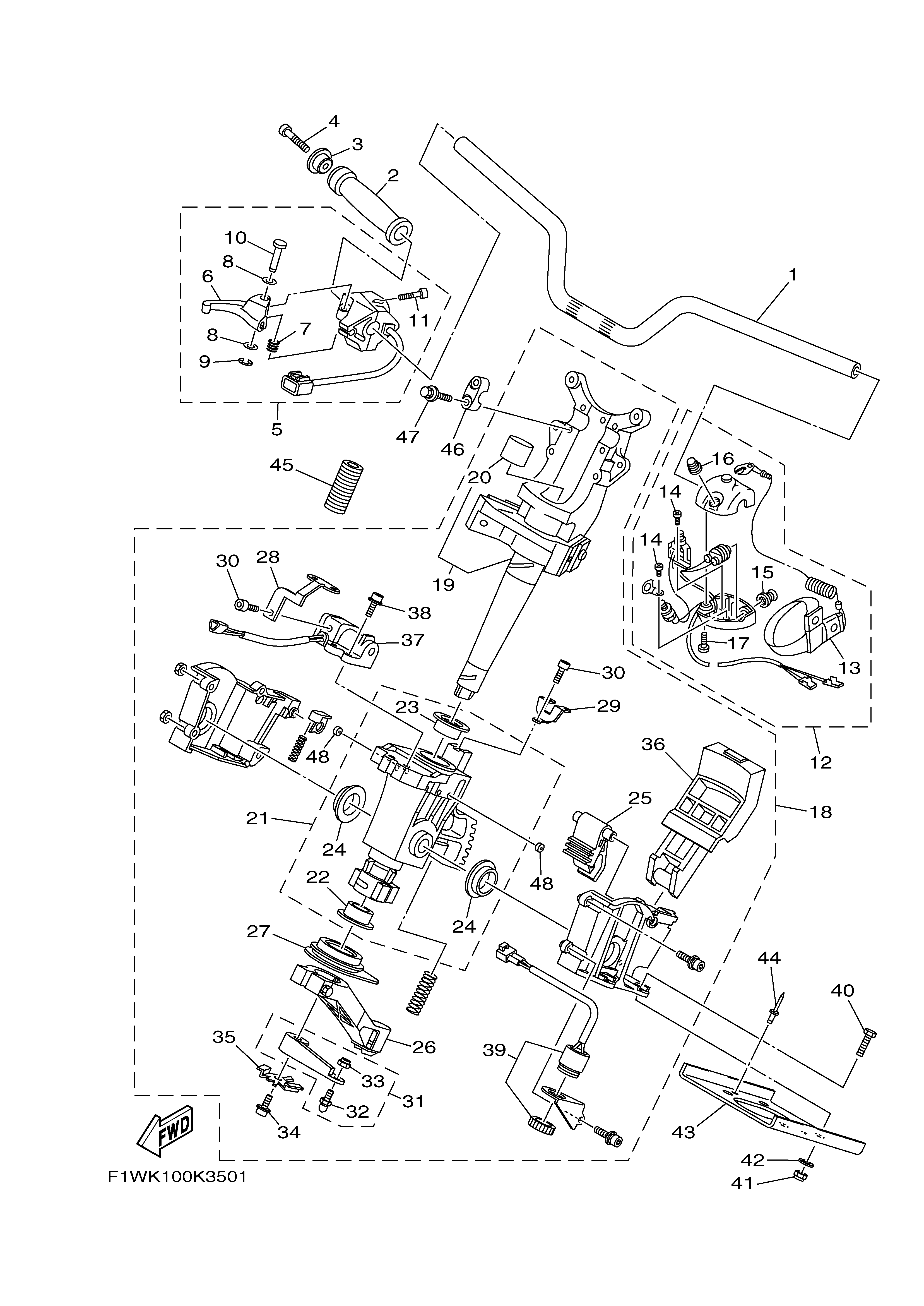

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | F1S-61552-00-00 | HANDLE | 1 |
| 2 | GP7-U155D-01-00 | GRIP, HANDLE | 1 |
| 3 | F1S-U155F-00-00 | GRIP, END | 1 |
| 4 | 90110-05908-00 | BOLT, HEXAGON SOCKET HEAD | 1 |
| 5 | F1W-67250-01-00 | THROTTLE LEVER ASSY | 1 |
| 6 | F0D-67255-02-00 | . LEVER, THROTTLE | 1 |
| 7 | EW2-67256-00-00 | . SPRING | 1 |
| 8 | 92990-05600-00 | WASHER, PLAIN (646) | 2 |
| 9 | 99080-04600-00 | CIRCLIP (EU0) | 1 |
| 10 | F0D-67257-00-00 | . SHAFT | 1 |
| 11 | F1X-6725F-01-00 | . BOLT, THROTTLE | 1 |
| 12 | F1S-68310-01-00 | SWITCH BOX ASSY | 1 |
| 13 | EW2-68348-00-00 | . LANYARD, STOP SWITCH | 1 |
| 14 | 98580-03008-00 | SCREW, PAN HEAD (J10) | 2 |
| 15 | FK7-68312-02-00 | . STOP BUTTON COMP | 1 |
| 16 | FK7-68313-02-00 | . START BUTTON COMP | 1 |
| 17 | 98580-05525-00 | SCREW, PANHEAD (A93) | 1 |
| 18 | F1W-61400-19-00 | STEERING MASTER AS | 1 |
| 19 | F1W-67410-10-00 | . SHAFT ASSY | 1 |
| 20 | F1W-61435-00-00 | .. PIPE, SEAL | 1 |
| 21 | F1W-6773D-00-00 | . TUBE & BUSHING SET | 1 |
| 22 | F1S-6134M-00-00 | .. BUSH | 1 |
| 23 | F2C-6134M-00-00 | .. BUSH | 1 |
| 24 | F1S-6134M-10-00 | .. BUSH | 2 |
| 25 | F1S-61782-00-00 | . LOCK 1 | 1 |
| 26 | F1S-6146A-00-00 | . CABLE STOPPER ASSY | 1 |
| 27 | F1S-6143C-00-00 | . SEAL, RUBBER | 1 |
| 28 | F1W-65938-00-00 | . STAY 1 | 1 |
| 29 | F1S-65939-00-00 | . STAY 2 | 1 |
| 30 | F1B-613C1-10-00 | SCREW | 2 |
| 31 | F1S-6153R-02-00 | ARM ASSY. | 1 |
| 32 | EU0-61461-02-00 | .. STUD, JOINT BALL | 1 |
| 33 | 95720-06300-00 | .. NUT, SELF-LOCKING | 1 |
| 34 | F1W-61355-10-00 | BOLT | 1 |
| 35 | F1W-6142B-00-00 | . PLATE, RETAINING | 1 |
| 36 | F1W-6151M-00-00 | . LEVER ASSY | 1 |
| 37 | F1W-68303-00-00 | . SENSOR ASSY | 1 |
| 38 | F1S-61355-00-00 | . BOLT | 1 |
| 39 | F1S-68341-00-00 | . BUZZER | 1 |
| 40 | 97095-08035-00 | BOLT (62K) | 1 |
| 41 | 95780-08300-00 | NUT, NYLON (6J8) | 1 |
| 42 | F1W-U725E-00-00 | WASHER | 1 |
| 43 | F1X-U1554-00-00 | PLATE, RETAINING | 1 |
| 44 | 90267-489U6-00 | RIVET, BLIND | 1 |
| 45 | 90447-22803-00 | TUBE | 1 |
| 46 | EU0-23814-32-00 | HOLDER, HANDLE UPPER | 1 |
| 47 | 90119-089U1-00 | BOLT, WITH WASHER(GH6) | 1 |
| 48 | F1W-6358B-00-00 | . PLUG | 2 |
