Description

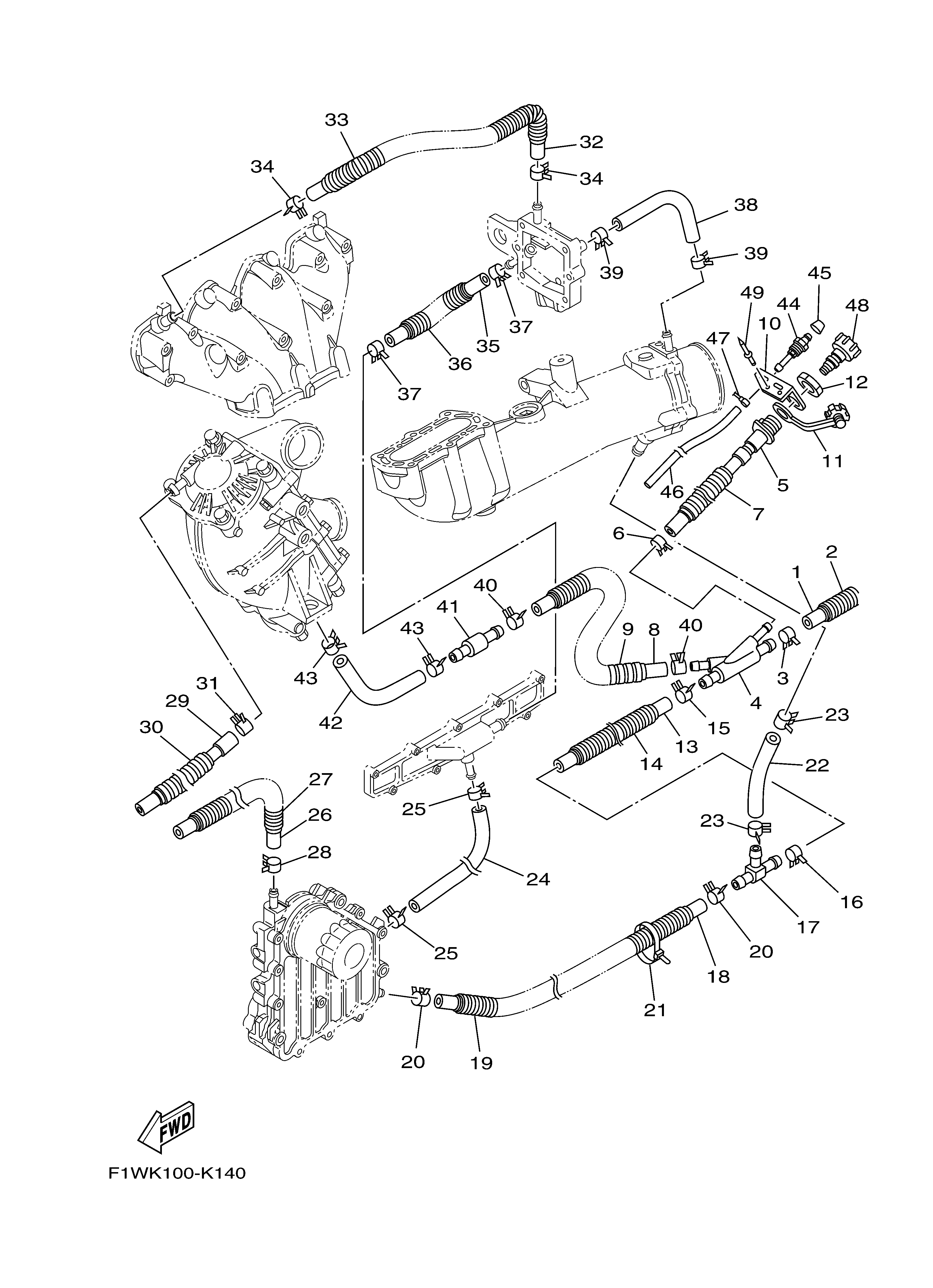

| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 90445-21806-00 | HOSE (L250) | 1 |
| 2 | F2T-U773D-20-00 | TUBE | 1 |
| 3 | 90467-200A0-00 | CLIP | 1 |
| 4 | 6CS-12581-00-00 | JOINT, HOSE 1 | 1 |
| 5 | 63M-12580-00-00 | JOINT ASSY | 1 |
| 6 | 90467-150A0-00 | CLIP | 1 |
| 7 | 90447-19801-00 | TUBE (L485) | 1 |
| 8 | 90445-21807-00 | HOSE (L970) | 1 |
| 9 | 90447-22802-00 | TUBE (L850) | 1 |
| 10 | 6S5-12443-00-00 | STAY | 1 |
| 11 | 682-84385-01-00 | CAP,1 | 1 |
| 12 | EU0-61652-00-00 | NUT | 1 |
| 13 | 6S5-1243E-01-00 | HOSE 2 | 1 |
| 14 | F2T-U773D-00-00 | TUBE | 1 |
| 15 | 90467-200A0-00 | CLIP | 1 |
| 16 | 90467-200A0-00 | CLIP | 1 |
| 17 | 6BH-12584-00-00 | JOINT, HOSE 3 | 1 |
| 18 | 90445-18012-00 | HOSE (L400) | 1 |
| 19 | 90447-19005-00 | TUBE (L260) | 1 |
| 20 | 90467-160A0-00 | CLIP | 2 |
| 21 | 90464-35132-00 | CLAMP | 1 |
| 22 | 6S5-12589-01-00 | HOSE 6 | 1 |
| 23 | 90467-200A0-00 | CLIP | 2 |
| 24 | 6BH-1244H-00-00 | HOSE 5 | 1 |
| 25 | 90467-150A1-00 | CLIP | 2 |
| 26 | 6S5-12588-00-00 | HOSE 5 | 1 |
| 27 | 90447-19006-00 | HOSE, WITH SPRING (L=630) | 1 |
| 28 | 90467-160A0-00 | CLIP | 1 |
| 29 | 6S5-12552-00-00 | HOSE 8 | 1 |
| 30 | 90446-24M89-00 | HOSE (L420) | 1 |
| 31 | 90467-170A0-00 | CLIP | 1 |
| 32 | 6S5-12577-00-00 | HOSE 2 | 1 |
| 33 | 90446-27M55-00 | TUBE (L400) | 1 |
| 34 | 90467-160A0-00 | CLIP | 2 |
| 35 | 6S5-12579-00-00 | HOSE 4 | 1 |
| 36 | 90447-19011-00 | TUBE (L150) | 1 |
| 37 | 90467-160A0-00 | CLIP | 2 |
| 38 | 90445-16013-00 | HOSE (L220) | 1 |
| 39 | 90467-160A0-00 | CLIP | 2 |
| 40 | 90467-200A0-00 | CLIP | 2 |
| 41 | 6S5-12594-00-00 | JOINT, HOSE 4 | 1 |
| 42 | 6S5-12576-01-00 | HOSE 1 | 1 |
| 43 | 90467-200A0-00 | CLIP | 2 |
| 44 | 61L-5169A-00-00 | NIPPLE, GREASE | 1 |
| 45 | 663-45119-01-00 | CAP, GREASE NIPPLE | 1 |
| 46 | 90445-09M21-00 | HOSE (L445) | 1 |
| 47 | 90465-10098-00 | CLAMP | 1 |
| 48 | 67X-E2590-00-00 | CONDUCTION ASSY | 1 |
| 49 | 90267-48938-00 | RIVET (EU0) | 1 |
