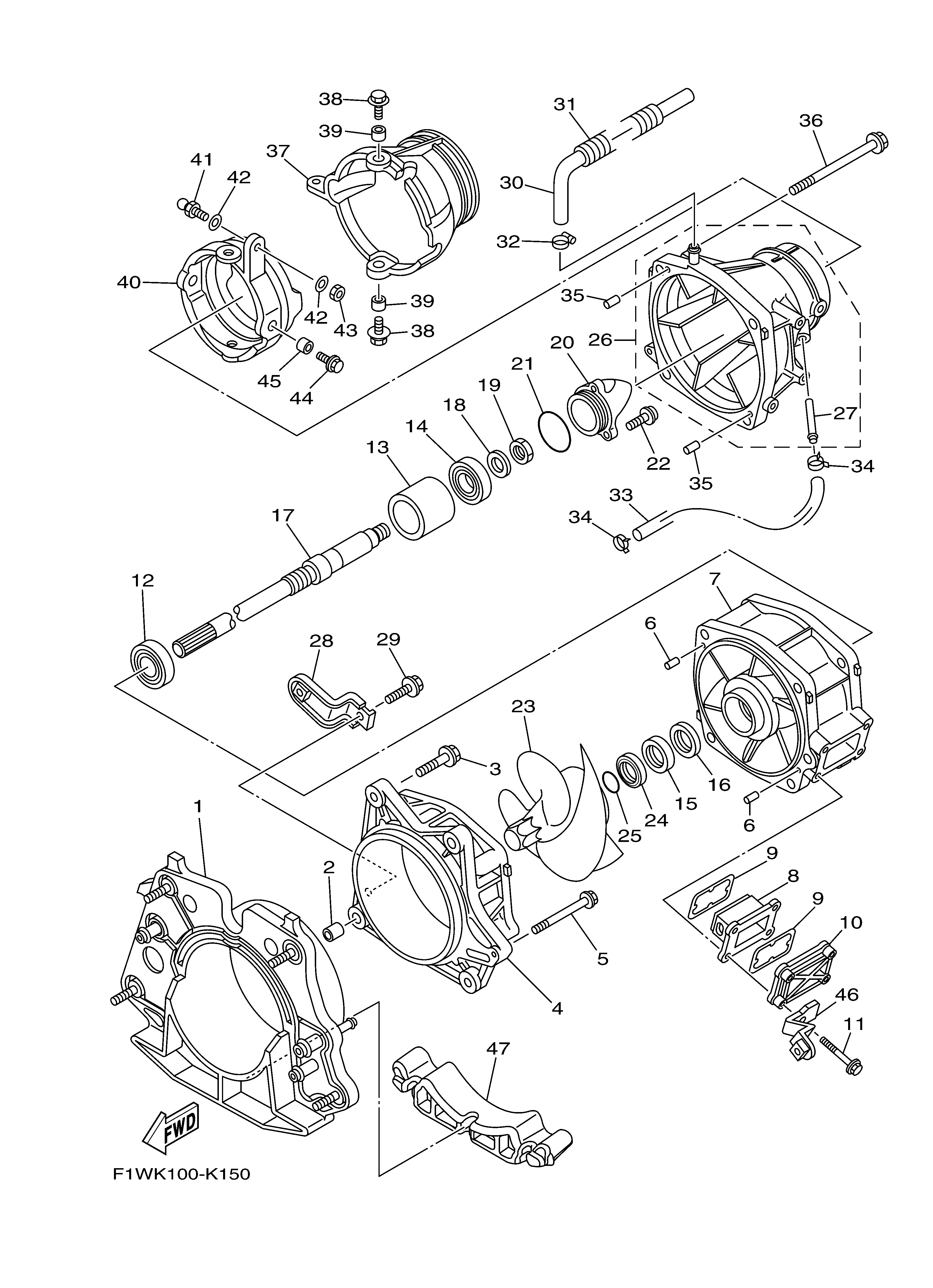

Description
| REF # | PART NUMBER | ITEM NAME | QTY |
|---|---|---|---|
| 1 | 6S5-G5831-02-00 | PLATE, TRANSOM | 1 |
| 2 | 99590-14016-00 | PIN, DOWEL | 1 |
| 3 | 90119-10811-00 | BOLT, WITH WASHER | 1 |
| 4 | 6CR-R1312-00-00 | HOUSING, IMPELLER | 1 |
| 5 | 90119-06894-00 | BOLT, WITH WASHER | 1 |
| 6 | 93606-12019-00 | PIN, DOWEL | 2 |
| 7 | 6CR-R1315-00-00 | DUCT, IMPELLER | 2 |
| 8 | 66V-46882-00-00 | FILTER | 1 |
| 9 | 66V-42414-00-00 | . O-RING | 2 |
| 10 | 66V-45214-00-00 | COVER, WATER INLET 1 | 1 |
| 11 | 90119-06898-00 | BOLT,WITH WASHER | 1 |
| 12 | 93306-20654-00 | BEARING | 1 |
| 13 | 6S5-45538-00-00 | SPACER 1 | 1 |
| 14 | 93306-30582-00 | BEARING | 1 |
| 15 | 93102-31009-00 | . OIL SEAL | 1 |
| 16 | 93101-31001-00 | . OIL SEAL | 1 |
| 17 | 6S5-G5511-00-00 | SHAFT, DRIVE | 0 |
| 18 | 9290P-20600-00 | WASHER | 1 |
| 19 | 90170-20802-00 | NUT | 1 |
| 20 | 6S5-51326-00-00 | CAP | 1 |
| 21 | 93210-54010-00 | O-RING | 1 |
| 22 | 90110-06823-00 | BOLT, HEXAGON SOCKET HEAD | 1 |
| 23 | 6S5-R1321-04-00 | IMPELLER | 1 |
| 24 | 6BH-51348-01-00 | SPACER | 1 |
| 25 | 93210-30611-00 | . O-RING | 1 |
| 26 | 6S5-51318-00-94 | NOZZLE | 1 |
| 27 | 63M-51334-00-00 | . NIPPLE,HOSE | 1 |
| 28 | 6B6-R1343-00-00 | BRACKET | 1 |
| 29 | 90119-06890-00 | BOLT,WITH WASHER | 1 |
| 30 | 90445-16806-00 | HOSE (L310) | 1 |
| 31 | 90447-19015-00 | TUBE (L230) | 1 |
| 32 | 90601-118UF-00 | BAND, HOSE 18 | 1 |
| 33 | 90445-14804-00 | HOSE (L330) | 1 |
| 34 | 90467-14803-00 | CLIP | 2 |
| 35 | 93606-12019-00 | PIN, DOWEL | 2 |
| 36 | 90119-10807-00 | BOLT, WITH WASHER | 1 |
| 37 | 6S5-R1313-01-00 | NOZZLE, DEFLECTOR | 1 |
| 38 | 90119-08852-00 | BOLT, WITH WASHER | 2 |
| 39 | 90387-08M06-00 | COLLAR | 2 |
| 40 | 60T-51190-00-94 | RING,TRIM | 1 |
| 41 | GH3-U146E-00-00 | STUD, JOINT BALL | 1 |
| 42 | 90201-068M4-00 | WASHER, PLATE | 2 |
| 43 | 9538R-06700-00 | NUT | 1 |
| 44 | 90119-08852-00 | BOLT, WITH WASHER | 1 |
| 45 | 90387-08M06-00 | COLLAR | 1 |
| 46 | 6B6-51342-00-00 | BRACKET 2 | 1 |
| 47 | F1W-U72C0-01-00 | SPACER | 1 |
