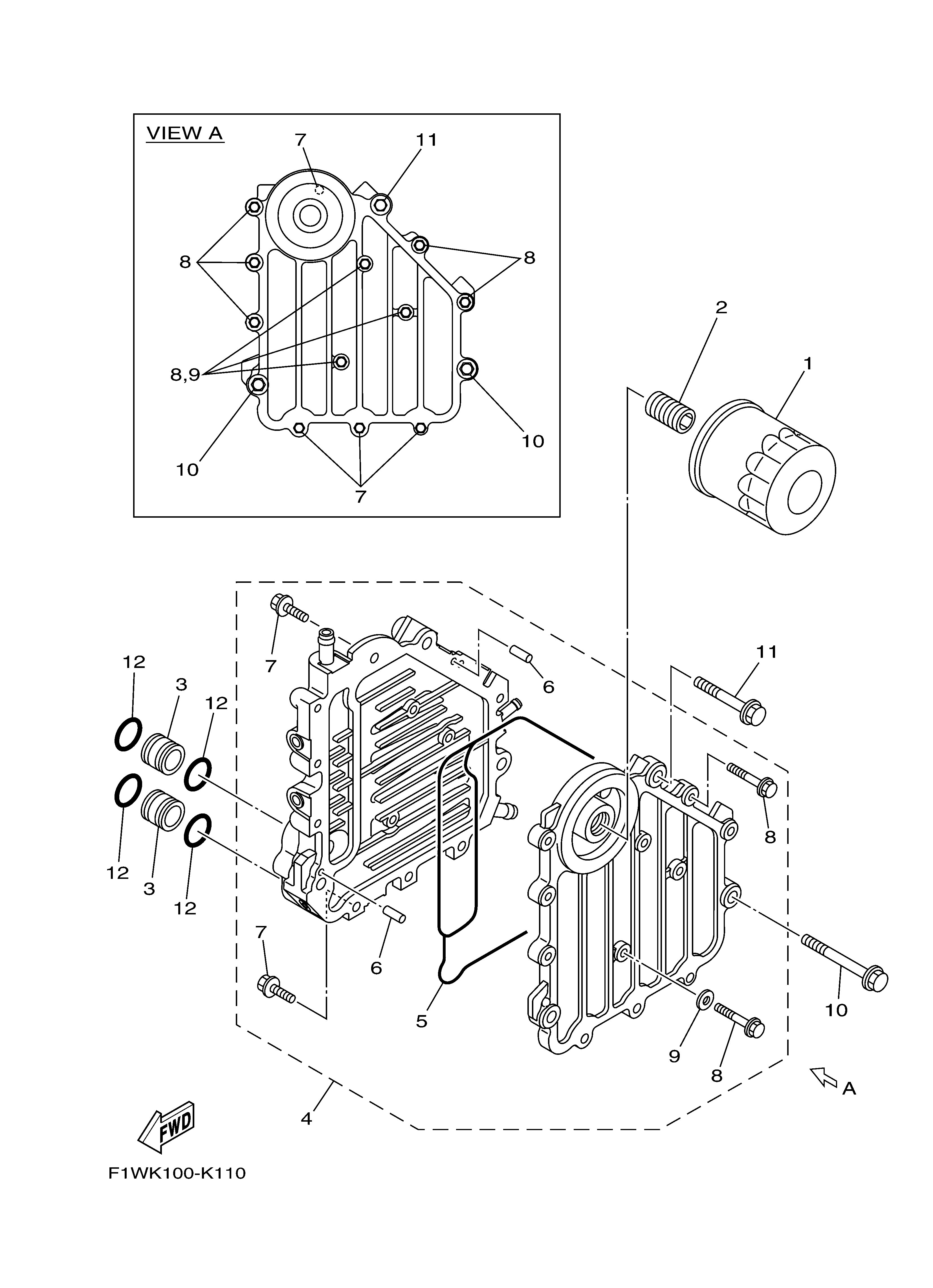

2011 FX CRUISER SHO (FX1800AK) F1WK - OIL COOLER
Roll over image to zoom in Click on image to zoom
2011 FX CRUISER SHO (FX1800AK) F1WK - OIL COOLER

2011 FX CRUISER SHO (FX1800AK) F1WK - OIL COOLER

YAMAHA Catalog

Description

REF # PART NUMBER ITEM NAME QTY
1 69J-13440-05-00 ELEMENT ASSY, OIL CLEANER 1
2 6S5-12858-00-00 BOLT, UNION 1
3 60E-13446-00-00 CONNECTOR 2
4 6S5-13470-31-00 OIL COOLER ASSY 1
5 6BH-13556-00-00 . GASKET, MANIFOLD 1
6 93604-10M03-00 . PIN, DOWEL 2
7 90105-06184-00 . BOLT, FLANGE 4
8 90105-06185-00 . BOLT, FLANGE 5
9 90430-06232-00 . GASKET 2
10 90105-08169-00 BOLT, FLANGE 3
11 90105-08170-00 BOLT, FLANGE 2
12 93210-18322-00 O-RING 4
