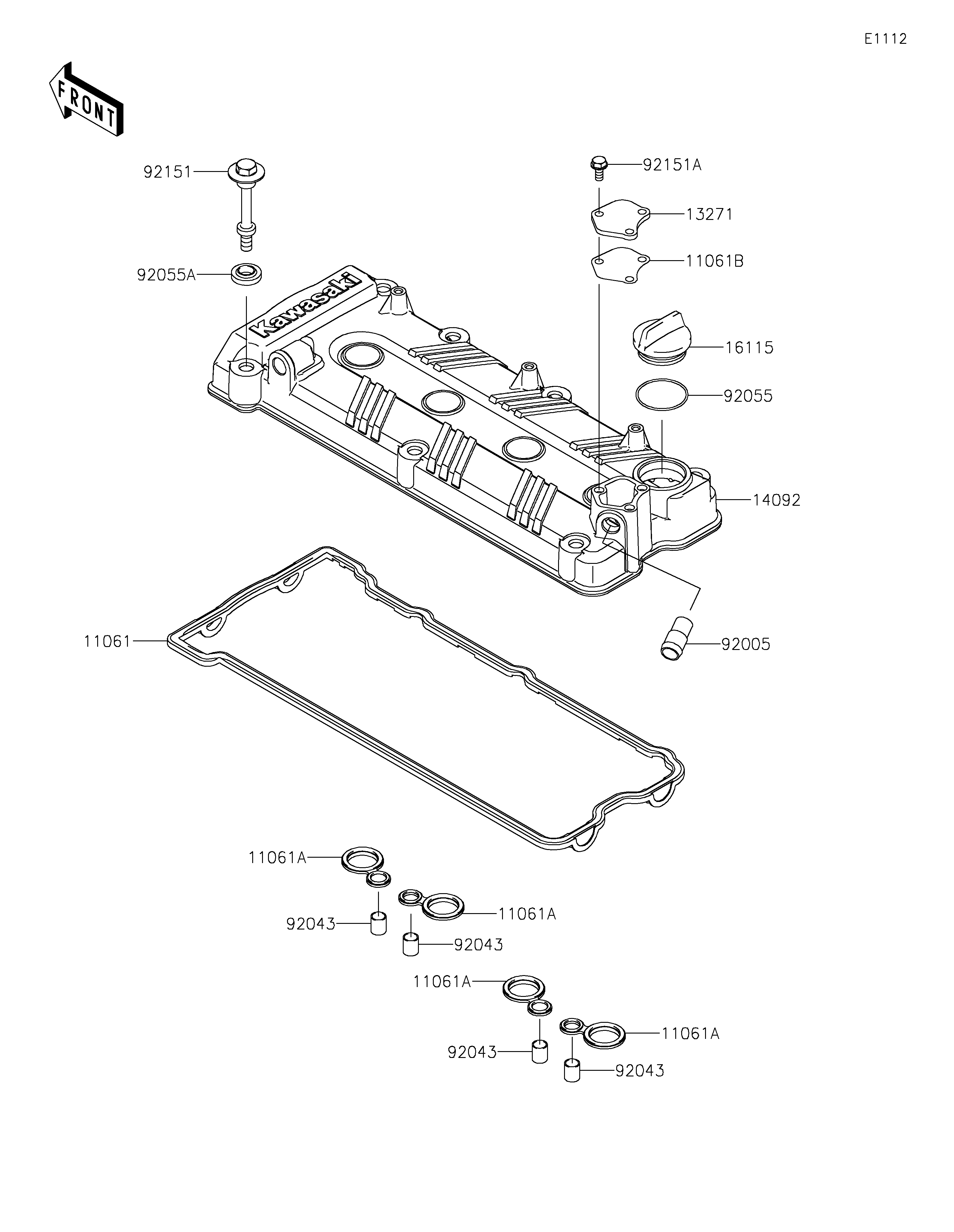

2024 SX-R 160 (JS1500ARFNN)-Cylinder Head Cover
Roll over image to zoom in Click on image to zoom
2024 SX-R 160 (JS1500ARFNN)-Cylinder Head Cover

2024 SX-R 160 (JS1500ARFNN)-Cylinder Head Cover

JETSTAR [Jetskiparts from Japan]

Description

REF # PART NUMBER ITEM NAME QTY
11061 11061-0090 GASKET,HEAD COVER 1
11061A 11061-0105 GASKET,SPARK PLUG HOLE 4
11061B 11061-0814 GASKET,PLATE 1
13271 13271-3898 PLATE 1
14092 14092-0836 COVER,HEAD 1
92055 92055-1359 RING-O,14.8X2.4 1
92055A 92055-1421 RING-O,26.8X2.4 2
92066 92066-3763 PLUG 1
92071 92071-1239 GROMMET 4
92151 92151-3783 BOLT,SOCKET,6X25 6
92153 92153-3754 BOLT,6X35 6
92153A 92153-3775 BOLT,6X30 1
