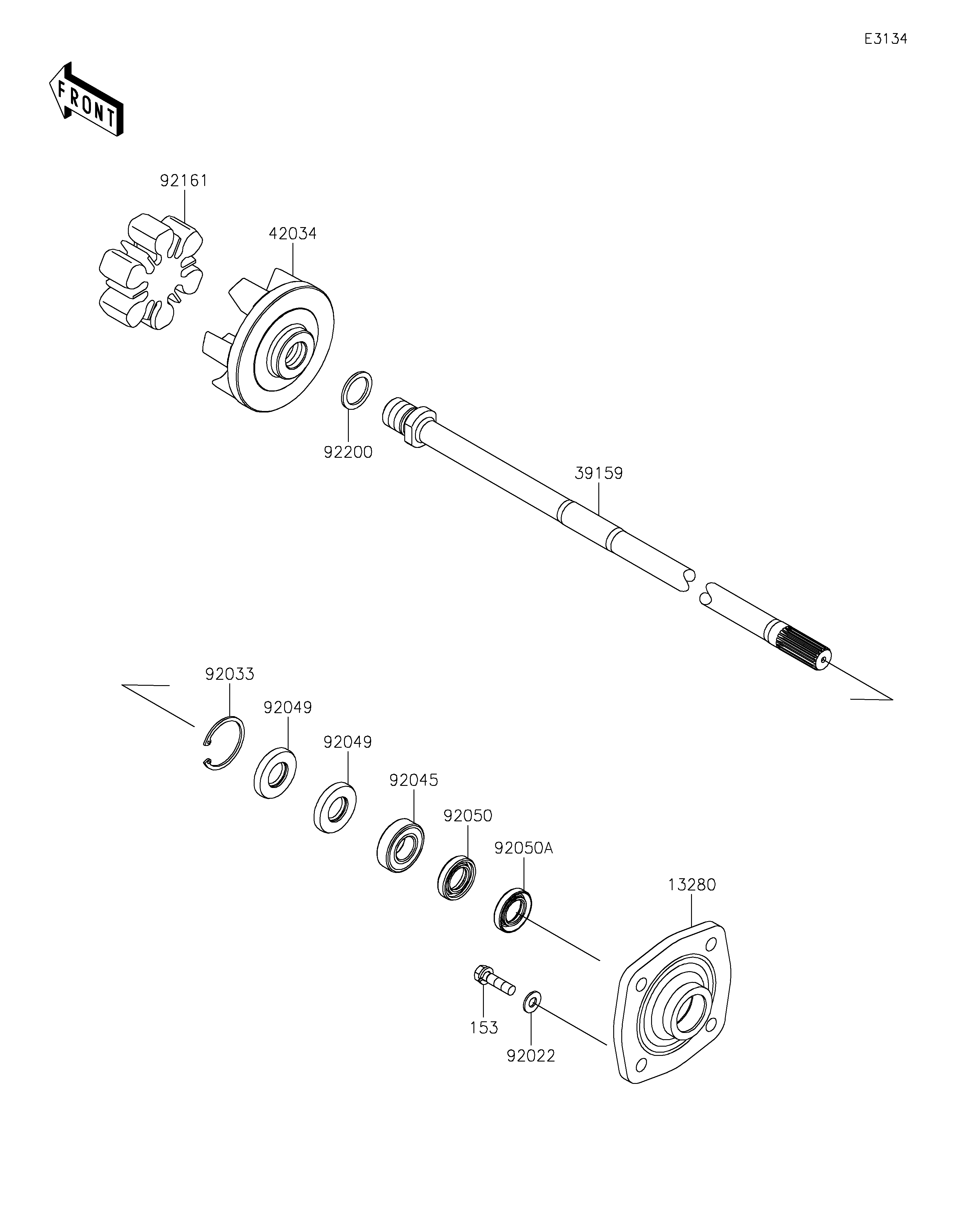

2024 SX-R 160 (JS1500ARFNN)-Drive Shaft
Roll over image to zoom in Click on image to zoom
2024 SX-R 160 (JS1500ARFNN)-Drive Shaft

2024 SX-R 160 (JS1500ARFNN)-Drive Shaft

JETSTAR [Jetskiparts from Japan]

Description

REF # PART NUMBER ITEM NAME QTY
13280 13280-3756 HOLDER 1
39159 39159-0047 SHAFT-DRIVE 1
42034 42034-3711 COUPLING 1
92022 92022-1964 WASHER,8.2X18X1.5 4
92033 92033-3713 RING-SNAP,42MM 1
92033A 92033-3734 RING-SNAP,25MM 1
92045 92045-3731 PIN-DRIVE SHAFT 1
92049 92049-3713 PIN-COUPLING 1
92049A 92049-3717 PIN,8X40 1
